Knitted Wire Mesh
Product Specifications:

Knitted wire mesh is an excellent cost-effective EMI gasket, providing shielding both in magnetic and electric fields.

  • Product Details
  • Now Inquiry
  • Browse Other Products

Knitted wire mesh is an excellent cost-effective EMI gasket, providing shielding both in magnetic and electric fields. Changzhou Pioneer Electronic has 5 types: knitted wire mesh gasket-Mesh Core, knitted wire mesh gasket over elastomer core, EMI shielding tape, Die-compressed wire mesh gasket, EMI wire mesh shielding & Environmental seal gaskets.

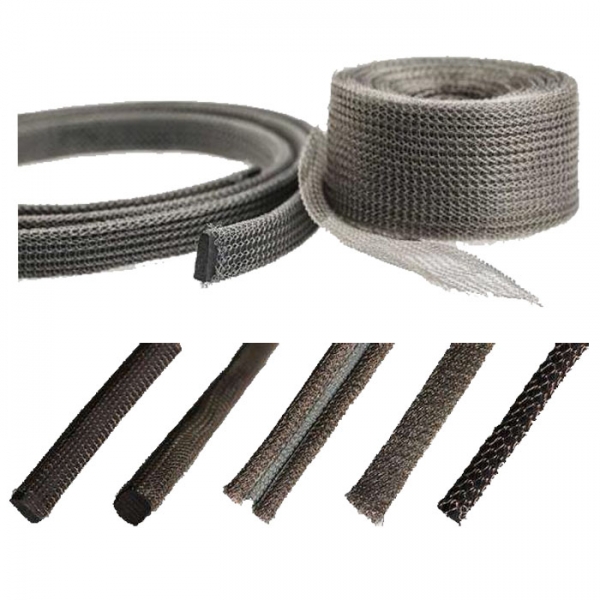

1.Knitted wire mesh gasket-Mesh Core

Knitted Wire Mesh

Cross section: rectangular, round, round with tail, double round with tail



Materials: tin-plated phosphor bronze(Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated
brass (Ag/Brass), Monel, aluminum(Al)



EMI shielding effectiveness

Materials Magnentic-field Electric-field Plane wave
100KHz 100MHz 1GHz 10GHz
dB dB dB dB
Sn/Cu/Fe 80+ 130+ 105 95
Su/Ph/Bz 80+ 130+ 110 100
Al 60 130 90 80
Monel 60+ 130 90 80

Based on 127mm * 127mm.

Order information

All knitted wire mesh are supplied on spool,coils or cut to length as individual gaskets, customized acceptable.

Dimater Width
3.18mm 18mm
3.18mm 25mm
6.35mm 25mm

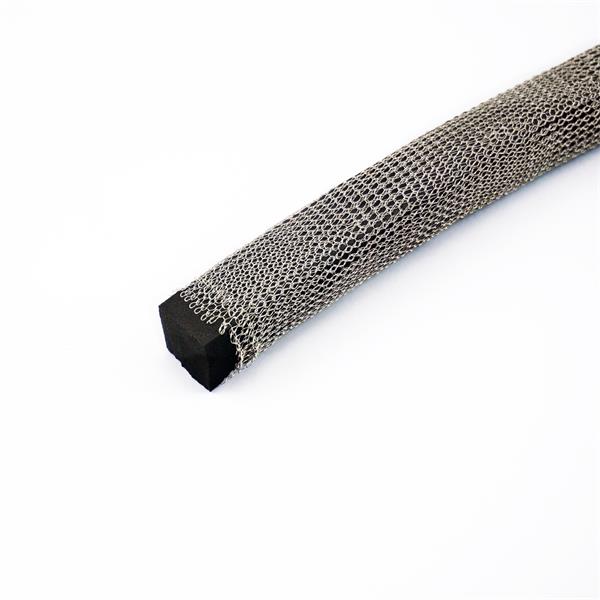

2.Knitted wire mesh gasket over elastomer core

Knitted Wire Mesh

Cross section: rectangular, round solid, round with tail, round hollow

Knitted Wire Mesh

Materials of elastomer core: Neoprene sponge, neoprene solid, silicone sponge, silicone solid, silicone hollow, polyurethane foam, etc.

Materials of wire mesh: Sn/Ph/Br, Sn/Cu/Fe, Monel.



EMI shielding effectiveness

Materials Magnentic-field Electric-field Plane wave
100KHz 100MHz 1GHz 10GHz
dB dB dB dB
Su/Ph/Bz 80 130 110 95
Monel 60 125 90 80
Sn/Cu/Fe 80 130 105 95

Based on 127mm * 127mm.

Order information

All knitted wire mesh are supplied on spool,coils or cut to length as individual gaskets, customized acceptable.

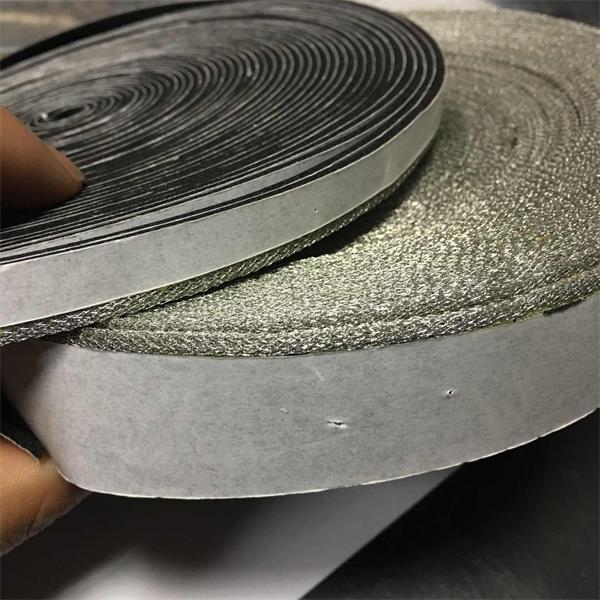

3.EMI shielding tape

EMI shielding tape is a double layered strip of knitted wire mesh, is ideal for shielding electronic cable and cable assemblies.

  Knitted Wire Mesh

Material: Sn/Cu/Fe, stainless steel

Materials Magnentic-field Electric-field Plane wave
100KHz 100MHz 1GHz 10GHz
dB dB dB dB
Sn/Cu/Fe 45 60 40 30

Order information

The shielding tape are supplied on coils.

Standard dimension: 16.5m/roll, 25mm/50mm width.



4.Die-compressed wire mesh gasket

Knitted Wire Mesh

Compress mesh gaskets are utilized for high volume, custom engineered application.

Although most common are rings, gaskets can also be produced in rectangular or special shapes, with holes or mounting recesses, corner radii,and other custom features.

The gasket is formed by die-compressing a controlled amount of knitted wire mesh that contains no joints or splices.

Features

Excellent EMI shielding and grounding properties

Controlled density

Good resiliency

Low cost

Easy installation

Material: Sn/Cu/Fe, Su/Ph/Bz, Al, Monel

Materials Magnentic-field Electric-field Plane wave
100KHz 100MHz 1GHz 10GHz
dB dB dB dB
Sn/Cu/Fe 80 135 105 95
Su/Ph/Bz 80 130 105 95
Al 80 130 110 100
Monel 60 130 90 80

Based on 127mm * 127mm.

Order information

Customized acceptable; we can develop new die if the die is not available and we have to charge the mold cost if that product is special shape.

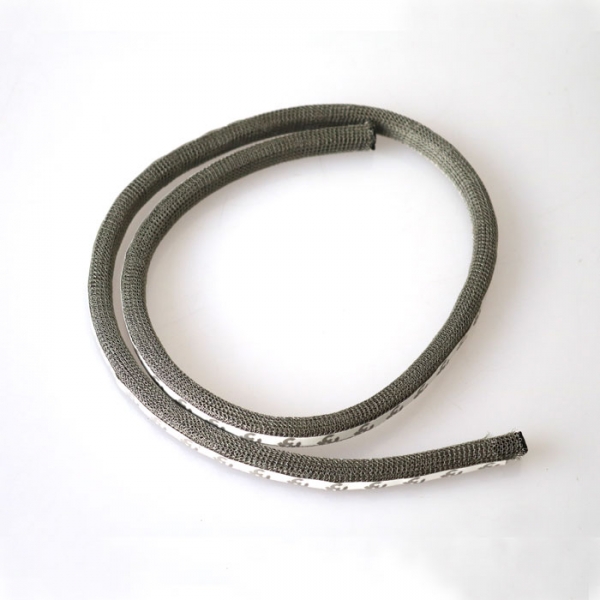

5.EMI wire mesh shielding & Environmental seal gaskets

Knitted Wire Mesh

CApplication: an environmental seal & EMI shielding

Available with or without adhesive in a broad range of standard cross sections.

Cross section

Knitted Wire Mesh

Material of wire mesh: Sn/Ph/Bz,Sn/Cu/Fe and Monel

Material of environmental sealing gasket: Neoprene, silicone, EPDM, etc.

EMI shielding effectiveness:

Materials Magnentic-field Electric-field Plane wave
100KHz 100MHz 1GHz 10GHz
dB dB dB dB
Monel 65 135 100 90

Based on 127mm * 127mm.

Order information

Customized acceptable.
